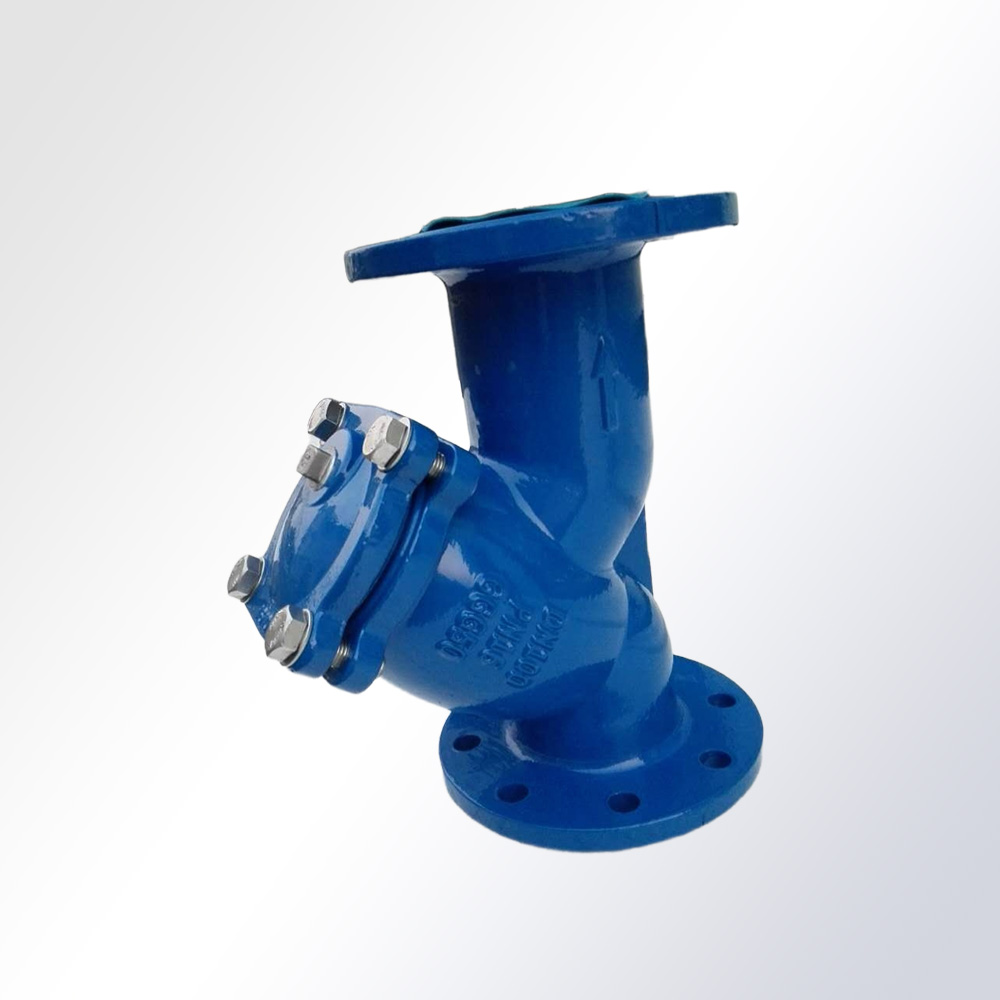

Y-strainer Flange End

›

‹

  • Y-strainer Flange End
  • Y-strainer Flange End

›

Y-strainer Flange End
Face to Face: EN558. S1.
Flanges Standard: BS EN 1092-2.
Inspection & testing: BS EN 12266-1
Working Pressure: 16bar
Working Temperature: -20℃ To 100℃
+86 13759933792
+86 13759933792
+86 137 5993 3792
melany@huaguanvalve.com
Contact Us
Send Email

Products Description

SPECIFICATIONS:

Face to Face: EN558. S1.
Flanges Standard: BS EN 1092-2.

Inspection & testing: BS EN 12266-1

Working Pressure: 16bar
Working Temperature: -20℃ To 100℃

Y-strainer-Flange-End-2
Y-strainer-Flange-End-3

MATERIAL LIST

NO

Part

Material

1

Body

Ductile lron

2

Bonnet

Ductile lron

3

FIlter Screen

SS304/316

4

Bolts

Stainless Steel

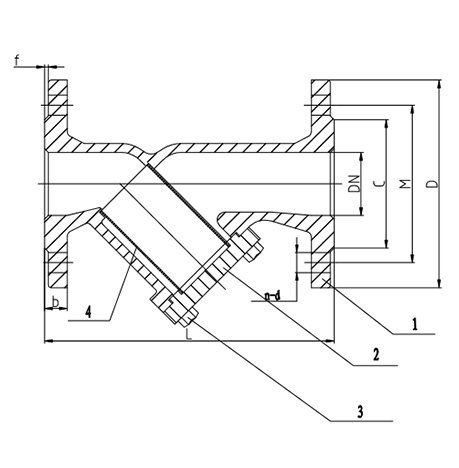

DIMENSIONS(mm) EN1092-2 PNI6

DN

L

C

M

D

b

F

n-d

50

230

99

125

165

19

3

4-19

65

290

118

145

185

19

3

4-19

80

310

132

160

200

19

3

8-19

100

350

156

180

220

19

3

8-19

125

400

184

210

250

19

3

8-19

150

483

211

240

285

19

3

8-23

200

600

266

295

340

20

3

12-23

250

730

319

355

405

22

3

12-28

300

850

370

410

460

24.5

4

12-28
