BS 750 Fire Hydrant

›

‹

  • BS 750 Fire Hydrant

›

BS 750 Fire Hydrant
Design Standard: BS EN1074-6.
Flanges Standard: BS EN1092-2 BS10 T/D, T/E.
Inspection & testing: BS EN 12266-1
Working Pressure: 16bar
Working Temperature: -20℃ to 100℃
+86 13759933792
+86 13759933792
+86 137 5993 3792
melany@huaguanvalve.com
Contact Us
Send Email

Products Description

SPECIFICATIONS:

Design Standard: BS EN1074-6.
Flanges Standard: BS EN1092-2 BS10 T/D, T/E.

Inspection & testing: BS EN 12266-1

Working Pressure: 16bar
Working Temperature: -20℃ to 100℃
Operator: Operating Nut

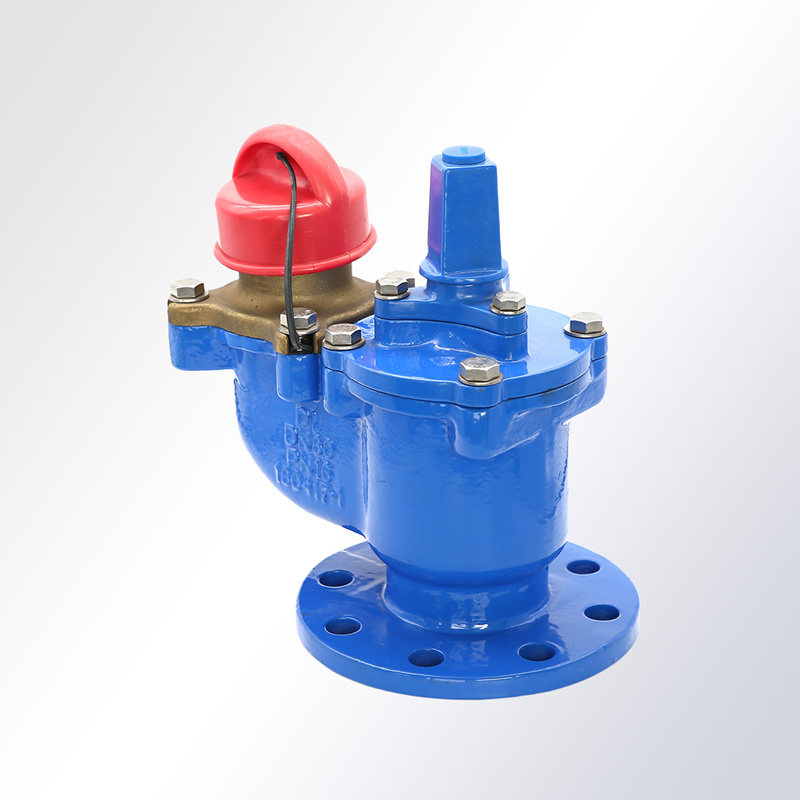

BS-750-Fire-Hydrant-1

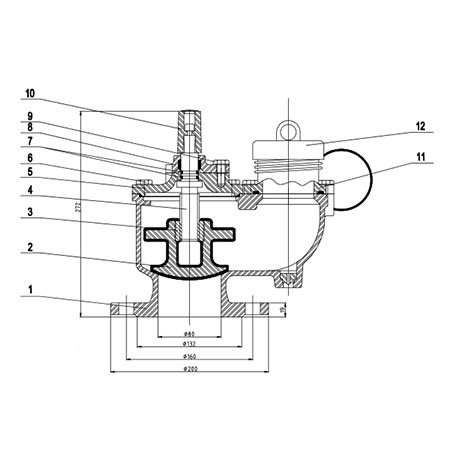

BS-750-Fire-Hydrant-2

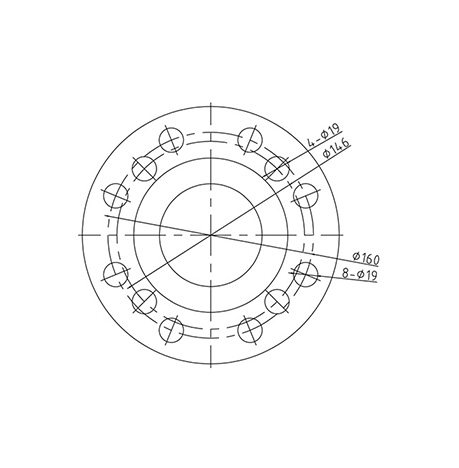

BS-750-Fire-Hydrant-3

MATERIAL LIST

ITEM

Part

Material

1

Body

Ductile lron

2

Gate

Ductile lron/EPDM

3

Stem Nut

Brass

4

Stem

SS420

5

Bonnet

Ductile lron

6

Bolt

Stainless Steel

7

O-ring

NBR

8

Gland

Ductile lron

9

Bolt

Stainless Steel

10

Cap Top

Ductile lron

11

Outlet

SS304

12

Cap

Plastic
