AWWA C515 NRS Resilient Seated Gate Valve Thread Ends

›

‹

  • AWWA C515 NRS Resilient Seated Gate Valve Thread Ends

›

AWWA C515 NRS Resilient Seated Gate Valve Thread Ends
Design Standard AWWA C515
Threaded ends standard: ANSI B1.20.1
(Other Flange Types available upon request)
Triple O-Rings stem seal
Lifting lugs built into stuffing gland
+86 13759933792
+86 13759933792
+86 137 5993 3792
melany@huaguanvalve.com
Contact Us
Send Email

Products Description

SPECIFICATIONS:

Design Standard AWWA C515
Threaded ends standard: ANSI B1.20.1
(Other Flange Types available upon request)
Triple O-Rings stem seal
Lifting lugs built into stuffing gland

Fusion Bonded Epoxy Coating to AWWA C550 Standard

Inspection & testing: AWWA C515
Working Pressure: 250PSL
Working Temperature: -20℃ To 100℃(-4°F to 212°F)
Operator: Handwheel,2"Operating Nut,Gearbox

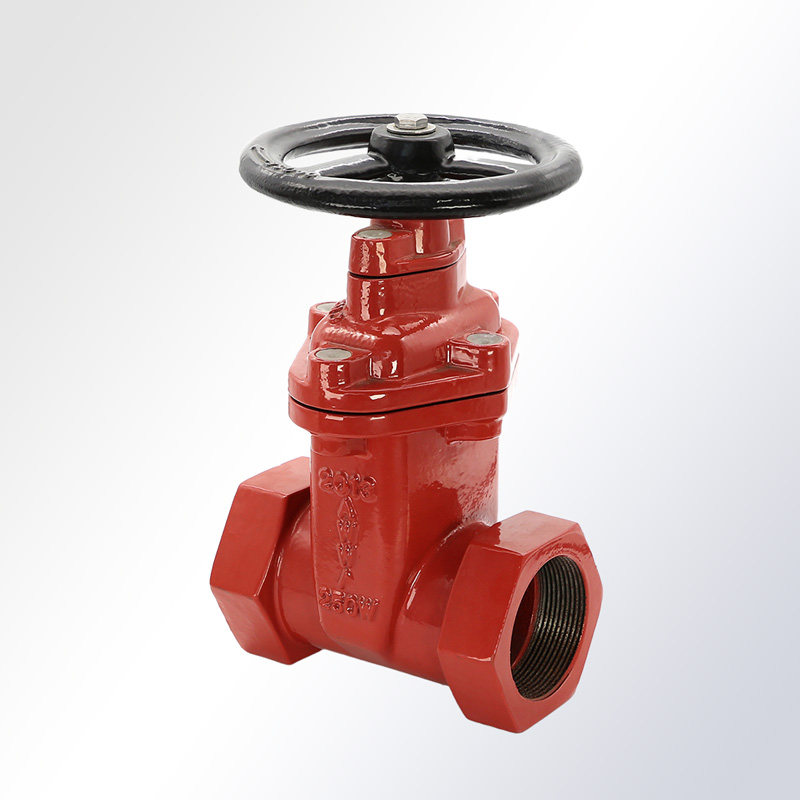

AWWA-C515-NRS-Resilient-Seated-Gate-Valve-Thread-Ends-1

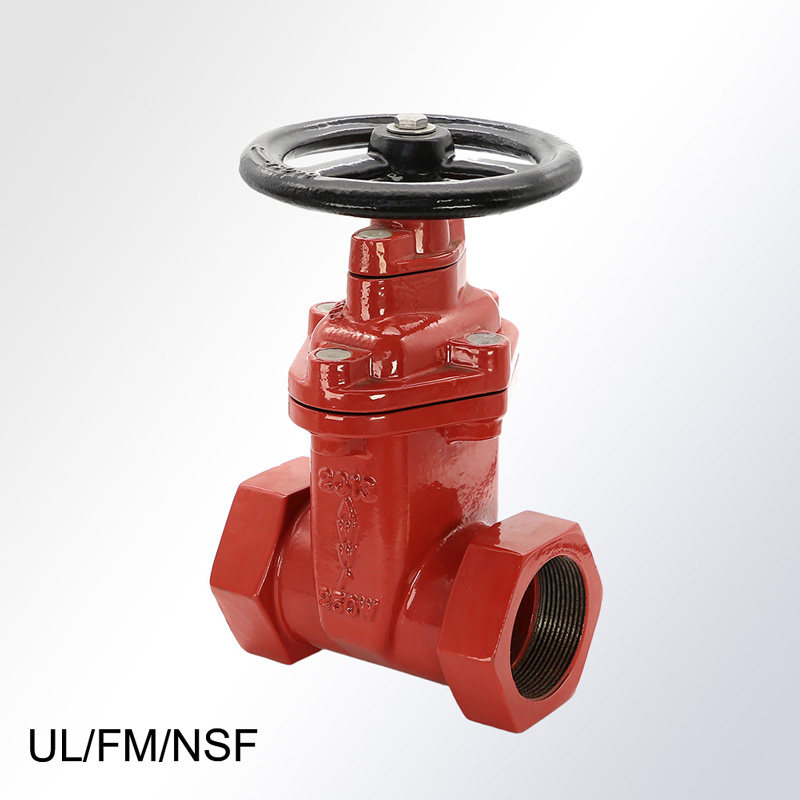

AWWA-C515-NRS-Resilient-Seated-Gate-Valve-Thread-Ends-2

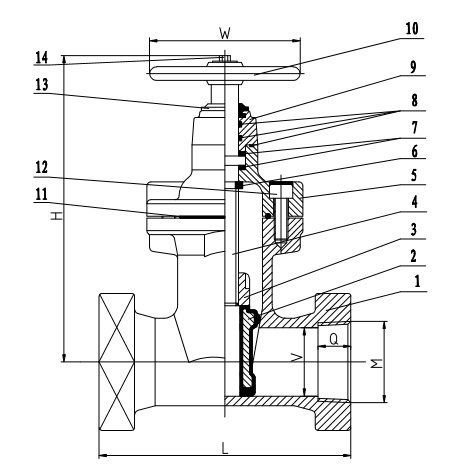

MATERIAL LIST

No

Part

Material(ASTM)

1

Body

Ductile lron ASTM A536

2

Wedge

Ductile lron EPDM/NBR

Encapsulated

3

Wedge Nut

Brass ASTM B124 C37700

4

Stem

Stainless Steel AISI 420

5

Bonnet

Ductile lron ASTM A536

6

Wedge Nut  Gasket

Rubber  NBR

7

Washers

Nylon/Brass ASTM B124

C37700

8

O-ring

Rubber  NBR

9

Gland

Ductile lron ASTM A536

10

Handwheel

Ductile lron ASTM A536

11

Bonnet Gasket

Rubber  NBR

12

Bonnet/Gland Bolt

Grand 8 Steel With ZINC Plated

13

Dust Cap

Rubber  NBR

14

Handwheel Bolts

Stainless Steel AISI304

DIMENSIONS(mm)

inch

L

M(NPT)

H

Q

W

V

1.5

6.5

1.5”

9.05

0.94

6.3

1.57

2"

7.24

2''

9.84

0.79

7.08

1.97

2.5"

7.48

2.5''

10.39

1.14

7.08

2.56

3"

7.99

3''

11.22

1.22

7.87

3.15

4"

9.01

4''

14.17

1.30

9.84

3.94

6"

10.51

6''

17.28

1.51

9.84

5.90
