AWWA C515 NRS Resilient Seated Gate Valve,Flanged Ends-IV

›

‹

  • AWWA C515 NRS Resilient Seated Gate Valve,Flanged Ends-IV

›

AWWA C515 NRS Resilient Seated Gate Valve,Flanged Ends-IV
Design Standard AWWA C515.
Non-Rising stem, Resilient Seated
Face to Face: ASME B16.10.
Flanges Standard: AWWA C110/A21.10,
ASME B16.1 AWWA C515
(Other Flange Types available upon request)
Inspection & testing: AWWA C515.
+86 13759933792
+86 13759933792
+86 137 5993 3792
melany@huaguanvalve.com
Contact Us
Send Email

Products Description

SPECIFICATIONS:

Design Standard AWWA C515.
Non-Rising stem, Resilient Seated
Face to Face: ASME B16.10.
Flanges Standard: AWWA C110/A21.10,
ASME B16.1 AWWA C515
(Other Flange Types available upon request)
Inspection & testing: AWWA C515.

Fusion Bonded Epoxy Coated Interior and Exterior to AWWA C550 Standard

Working Pressure:250PSI
(200 and 300 PSI available on request)
Working Temperature:-20℃ to 85℃
Operator:Handwheel,2”Operating Nut,Gearbox

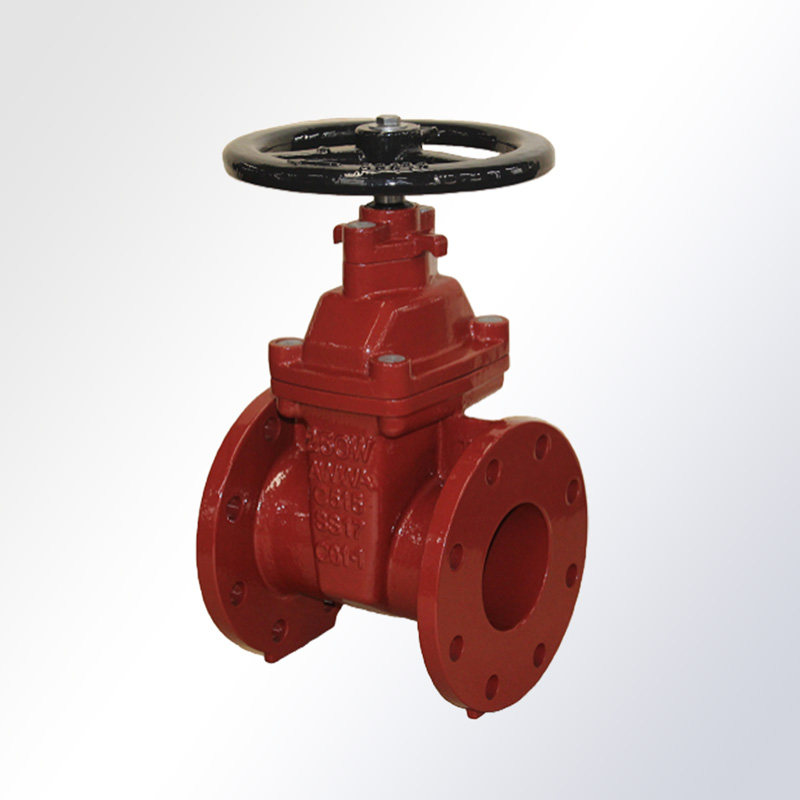

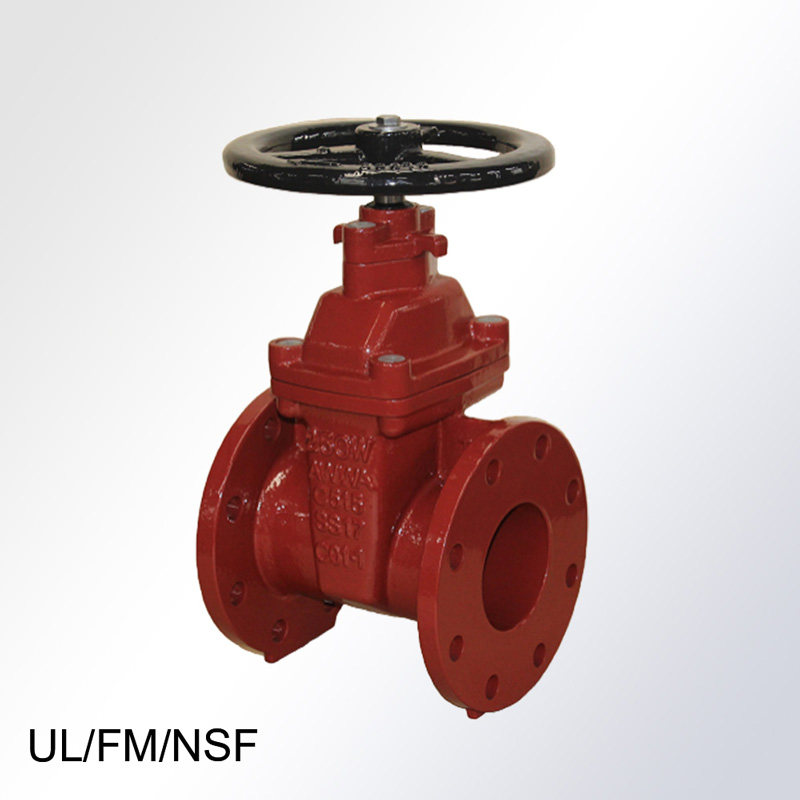

AWWA-C515-NRS-Resilient-Seated-Gate-Valve,Flanged-Ends-IV-1

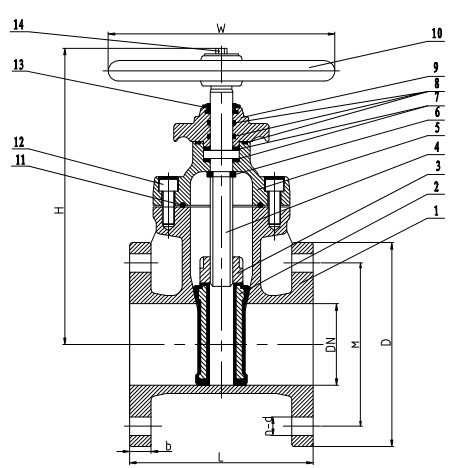

AWWA-C515-NRS-Resilient-Seated-Gate-Valve,Flanged-Ends-IV-2

MATERIAL LIST

NO.

Part

Material(ASTM)

1

Body

Ductile lron ASTM A536

2

Wedge

Ductile lron EPDM/NBR Encapsulated

3

Wedge Nut

Brass ASTM B124 C37700 / C86500

4

Stem

Stainless Steel AISI 420 / 304

5

Bonnet

Ductile lron ASTM A536

6

Wedge Nut

Gasket

Rubber NBR / EPDM

7

Washers

Nylon/Brass ASTM B124 C37700 / C86500

8

O-ring

Rubber NBR / EPDM

9

Gland

Ductile lron ASTM A536

10

Handwheel

Ductile lron ASTM A536

11

Bonnet Gasket

Rubber NBR / EPDM

12

Bonnet/Gland

Bolt

Grand 8 Steel With ZINC Plated / A2-70

13

Dust Cap

Rubber NBR / EPDM

14

Handwheel Bolts

Stainless Steel A2-70

DIMENSIONS(mm/inch)

in

L

H

M

D

W

n-d

b

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

2”

178

7

245

9.64

120.5

4.74

152

5.98

180

7.08

4-19

4-0.75

16

0.63

2.5”

190

7.48

258

10.15

139.5

5.49

178

7

180

7.08

4-19

4-0.75

18

0.7

3”

203

7.99

275

10.82

152.5

6

191

7.51

200

7.87

4-19

4-0.75

19.1

0.75

4”

229

9.01

333

13.11

190.5

7.5

229

9

254

10

8-19

8-0.75

19.1

0.75

5”

254

10

410

16.14

216

8.5

254

10

280

11.02

8-22

8-0.86

19.1

0.75

6”

267

10.51

453

17.83

241.5

9.5

279

10.98

320

12.60

8-22

8-0.86

19.1

0.75

8”

292

11.49

532

20.94

298.5

11.75

343

13.5

356

14.02

8-22

8-0.86

22.2

0.87

10”

330

12.99

646

25.43

362

14.25

406

15.98

406

15.98

12-25

12-0.98

23.8

0.93

12”

356

14.01

733

28.85

432

17

483

19.01

500

19.68

12-25

12-0.98

25.4

1

14”

381

15

908

35.74

476

18.74

533

20.98

600

23.62

12-29

12-1.14

25.4

1

16”

406

15.98

965

37.99

539.5

21.24

597

23.5

600

23.62

16-29

16-1.14

25.4

1

18”

432

17

1057

41.61

578

22.75

635

25

750

29.5

16-32

16-1.25

28.6

1.12

20”

457

17.99

1190

46.85

635

25

699

27.51

750

29.5

20-32

20-1.25

28.6

1.12

24”

508

20

1363

53.66

749.5

29.5

813

32

750

29.5

20-35

20-1.37

30.1

1.18
