AWWA C515 NRS Resilient Seated Gate Valve, Mechanical Joint

›

‹

  • AWWA C515 NRS Resilient Seated Gate Valve, Mechanical Joint

›

AWWA C515 NRS Resilient Seated Gate Valve, Mechanical Joint
Design Standard AWWA C515.
Non-Rising stem, Resilient Seated
Face to Face: ASME B16.10.
MJ*MJ to AWWA C111/A21.11-12
(FL*MJ available upon request)
+86 13759933792
+86 13759933792
+86 137 5993 3792
melany@huaguanvalve.com
Contact Us
Send Email

Products Description

SPECIFICATIONS:

Design Standard AWWA C515.
Non-Rising stem, Resilient Seated
Face to Face: ASME B16.10.
MJ*MJ to AWWA C111/A21.11-12
(FL*MJ available upon request)
Insoection & testing: AWWA C515

Fusion Bonded Epoxy Coated Interior and Exterior to AWWA C550 Standard

Working Pressure:250PSI
(200 and 300 PSI available on request)
Working Temperature:-20℃ to 100℃（-4°F to 212°F）Operator:Handwheel,2”Operating Nut,Gearbox

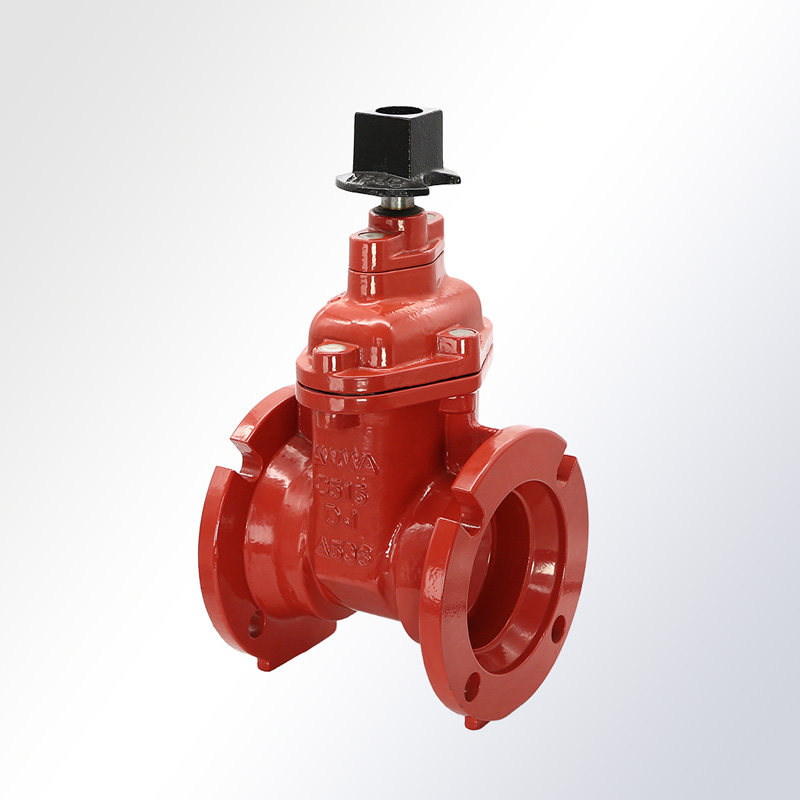

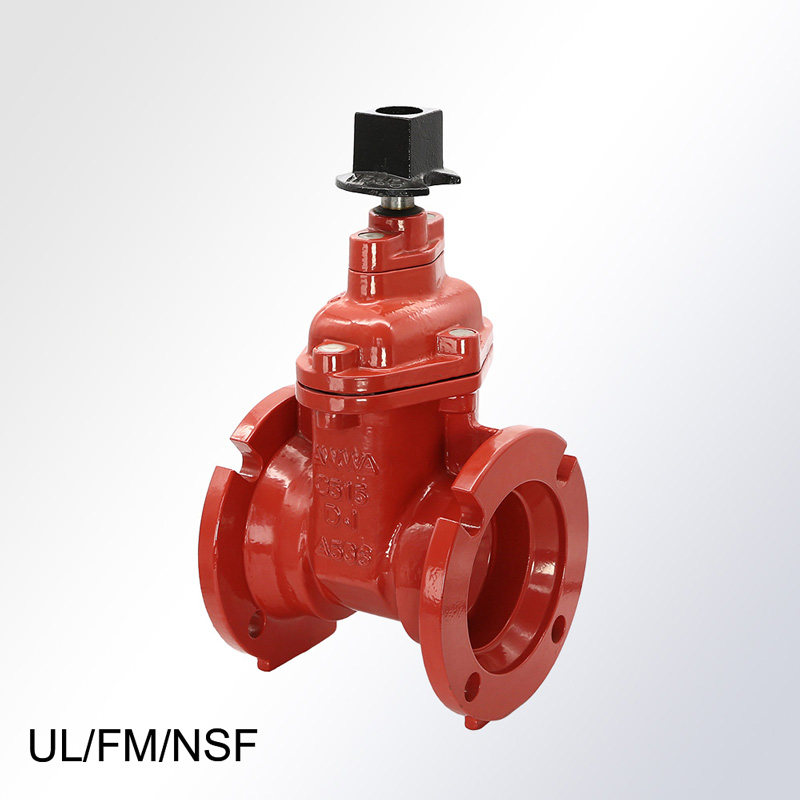

AWWA-C515-NRS-Resilient-Seated-Gate-Valve,-Mechanical-Joint-1

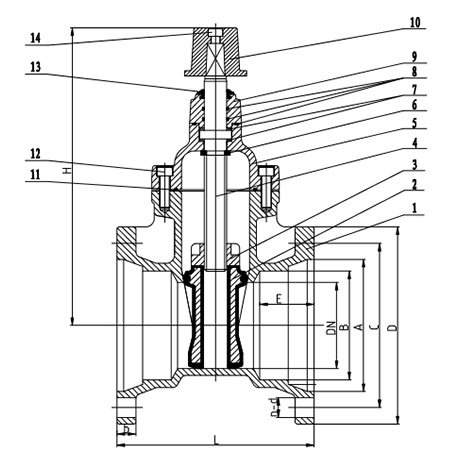

AWWA-C515-NRS-Resilient-Seated-Gate-Valve,-Mechanical-Joint-2

MATERIAL LIST

NO.

Part

Material(ASTM)

1

Body

Ductile lron ASTM A536

2

Wedge

Ductile lron EPDM/NBR Encapsulated

3

Wedge Nut

Brass ASTM B124 C37700

4

Stem

Stainless Steel AISI 420

5

Bonnet

Ductile lron ASTM A536

6

Wedge Nut Gasket

Rubber NBR

7

Washers

Nylon/Brass ASTM B124 C37700

8

O-ring

Rubber NBR

9

Gland

Ductile lron ASTM A536

10

Operating Nut

Ductile lron ASTM A536

11

Bonnet Gasket

Rubber NBR

12

Bonnet/Gland Bolt

CS With ZINC Plated/SS304

13

Dust Cap

Rubber NBR

14

Top Bolts

CS With ZINC Plated/SS304

DIMENSIONS AWWA C111/A21.11-12 C515-09(b)

inch

L

H

C

D

b

n-d

A

E

B

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

2"

210

8.27

262

10.31

120.5

4.74

157.2

6.19

16

0.63

2-19

2-0.75

90

3.54

63.5

2.50

67.5

2.66

3"

203

7.99

283

11.14

157.2

6.19

195

7.68

19.1

0.75

4-19

4-0.75

125.5

4.94

63.5

2.50

103.5

4.07

4"

229

9.02

351

13.80

190.5

7.50

231

9.09

19.1

0.75

4-22.3

4-0.88

153

6.02

63.5

2.50

124.5

4.90

6"

267

10.51

453

17.83

241.3

9.50

282

11.10

19.1

0.75

6-22.3

6-0.88

206.5

8.13

63.5

2.50

178

7.01

8"

292

11.50

559

22.01

298.5

11.75

340

13.39

22.2

0.87

6-22.3

6-0.88

261

10.28

63.5

2.50

232.5

9.15

10"

330

12.99

668

26.30

355.6

14.00

397

15.63

23.8

0.94

8-22.3

8-0.88

313.5

12.34

63.5

2.50

284.5

11.20

12"

356

14.02

753

29.65

413

16.26

454

17.87

25.4

1.00

8-22.3

8-0.88

367

14.45

63.5

2.50

338

13.31

14"

381

15.00

918

36.14

476.3

18.75

523

20.59

25.4

1.00

10-22.3

10-0.88

420.5

16.56

88.9

3.50

392.5

15.45

16"

406

15.98

975

38.39

533.4

21.00

580

22.83

25.4

1.00

12-22.3

12-0.88

474

18.66

88.9

3.50

445.7

17.55

18"

432

17.01

1067

42.01

590.6

23.25

638

25.12

25.4

1.00

12-22.3

12-0.88

527

20.75

88.9

3.50

499

19.65

20"

457

17.99

1199

47.20

647.7

25.50

695

27.36

28.6

1.13

14-22.3

14-0.88

580.5

22.85

88.9

3.50

552.5

21.75

24"

508

20.00

1363

53.66

762

30.00

810

31.89

30.1

1.19

16-22.3

16-0.88

687

27.05

88.9

3.50

659

25.94
