AWWA C515 OS&Y Resilient Seated Gate Valve,Flanged Ends

›

‹

  • AWWA C515 OS&Y Resilient Seated Gate Valve,Flanged Ends

›

AWWA C515 OS&Y Resilient Seated Gate Valve,Flanged Ends
Design Standard AWWA C515.
Face to Face: ASME B16.10.
Flanges Standard: AWWA C110/A21.10,ASME B16.1 AWWA C515
(Other Flange Types available upon request)
+86 13759933792
+86 13759933792
+86 137 5993 3792
melany@huaguanvalve.com
Contact Us
Send Email

Products Description

SPECIFICATIONS:

Design Standard AWWA C515.
Face to Face: ASME B16.10.
Flanges Standard: AWWA C110/A21.10,ASME B16.1 AWWA C515
(Other Flange Types available upon request)

Fusion Bonded Epoxy Coated to AWWA C550 Standard

Inspection & testing: AWWA C515.
Working Pressure:250PSI
(200 and 300 PSI available on request)
Working Temperature:-20℃ to 100℃（-4°F to 212°F）
Operator:Handwheel,Gearbox

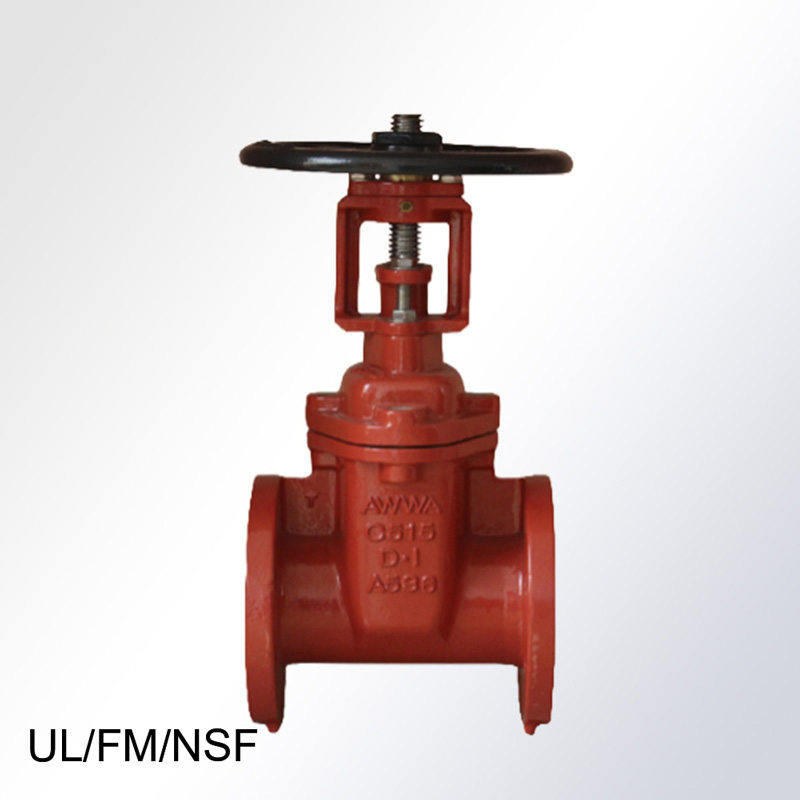

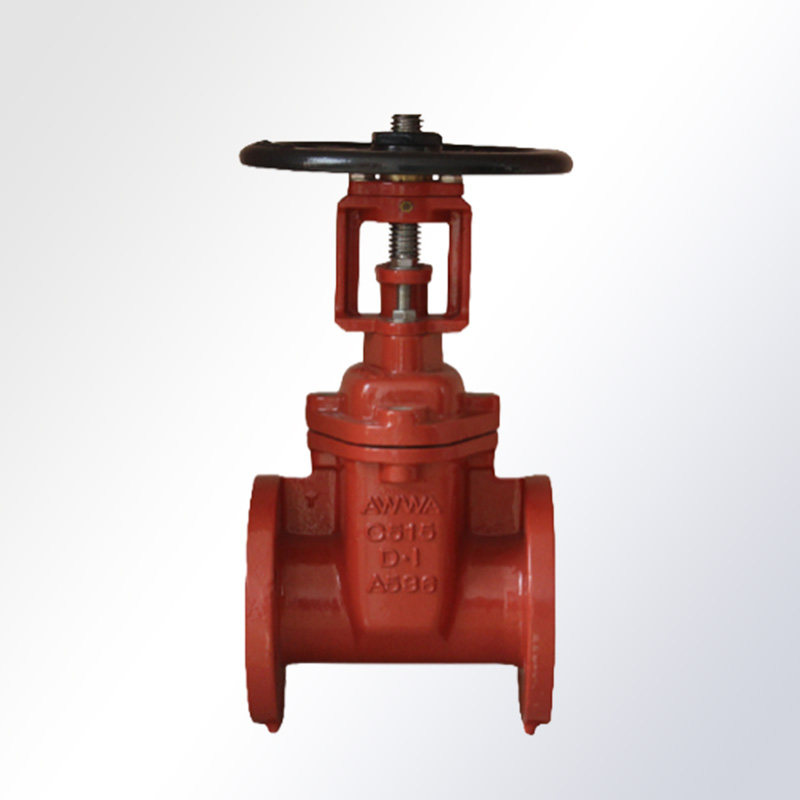

AWWA-C515-OS&Y-Resilient-Seated-Gate-Valve,Flanged-Ends-1

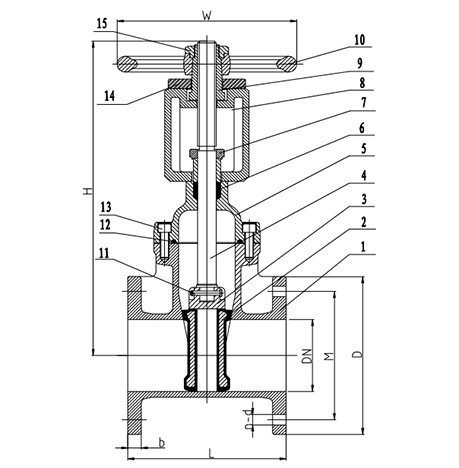

AWWA-C515-OS&Y-Resilient-Seated-Gate-Valve,Flanged-Ends-2

MATERIAL LIST

No

Part

Material(ASTM)

1

Body

Ductile Iron ASTM A536

2

Wedge

Ductile lron EPDM/NBR Encapsulated

3

Wedge Nut

Brass ASTM B124 C37700

4

Stem

Stainless Steel AISI 420

5

Bonnet

Ductile Iron ASTM A536

6

Packing

Flexinle Graphite

7

Gland

Ductile Iron ASTM A536

8

Yoke

Ductile Iron ASTM A536

9

Stem Nut

Brass ASTM B124 C37700

10

Handwheel

Ductile Iron ASTM A536

11

PIN

Stainless Steel

12

Bonnet Gasket

Rubber NBR

13

Bonnet/Gland Bolt

CS With ZINC Plated/SS304

14

Yoke Gland

Ductile Iron ASTM A536

15

Handwheel Bolts

Ductile Iron ASTM A536

DIMENSIONS: AWWA C515

inch

H

L

D

M

b

W

n-d

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

2"

354

13.94

178

7

152

5.98

120.5

4.74

16

0.63

200

7.87

4-19

4-0.75

2.5"

421

16.57

190

7.48

178

7

139.5

5.49

18

0.71

200

7.87

4-19

4-0.75

3"

480

18.90

203

7.99

191

7.52

152.5

6

19.1

0.75

250

9.84

4-19

4-0.75

4"

455

17.91

229

9.02

229

9.02

190.5

7.5

19.1

0.75

280

11.02

8-19

8-0.75

5"

530

20.87

254

10

254

10

216

8.50

19.1

0.75

280

11.02

8-22

8-0.87

6"

640

25.20

267

10.51

279

10.98

241.3

9.5

19.1

0.75

350

13.78

8-22

8-0.87

8"

798

31.42

292

11.50

343

13.50

298.5

11.75

22.2

0.87

400

15.75

8-22

8-0.87

10"

957

37.68

330

12.99

406

15.98

362

14.25

23.8

0.94

450

17.72

12-25

12-0.98

12"

1088

42.83

356

14.02

483

19.02

432

17

25.4

1

540

21.26

12-25

12-0.98

14"

1293

50.91

381

15

533

20.98

476

18.74

25.4

1

600

23.62

12-29

12-1.14

16"

1405

55.31

406

15.98

597

23.50

539.5

21.24

25.4

1

600

23.62

16-29

16-1.14

18"

1552

61.10

432

17

635

25

578

22.75

25.4

1

600

23.62

16-32

16-1.26

20"

1700

66.93

457

17.99

699

27.52

635

25

28.6

1.13

750

29.53

20-32

20-1.26

24"

1983

78.07

508

20

813

32

749.5

29.5

30.1

1.19

750

29.53

20-35

20-1.38
