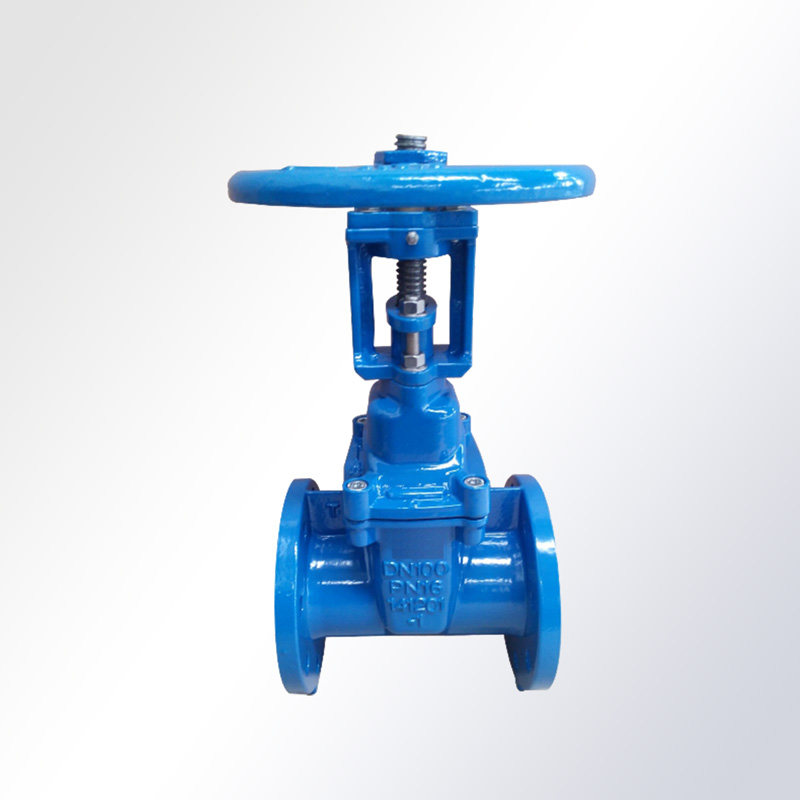

OS&Y Resilient Seated Gate Valve PN10/16

Face To Face Standard: EN 558,S3/S14/S15
(BS5163,DIN3202),SABS 664/665
Design Standard: BS EN1171/EN1074-2
Flanges Standard: BS EN1092-2
Inspection & testing: BS EN 12266-1
(Other Flange Types available upon request)

+86 13759933792

+86 13759933792

+86 137 5993 3792

melany@huaguanvalve.com

Send Email

Products Description

SPECIFICATIONS:

Triple O-Rings stem seal

Working Pressure: 16bar
Working Temperature: -20℃ to 85℃
Operator: Handwheel

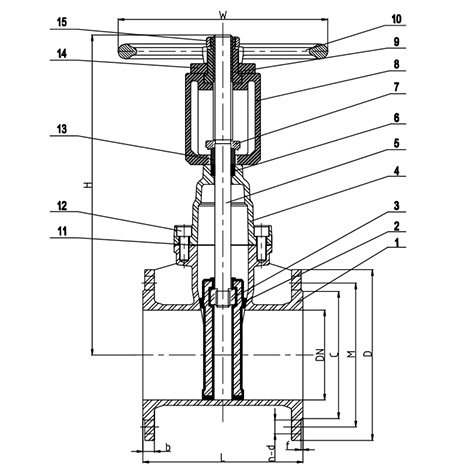

MATERIAL LIST

ITEM	Part	Material
1	Body	Ductile Iron
2	Wedge	Ductile Iron & EPDM
3	Wedge Nut	Brass
4	Bonnet	Ductile Iron
5	Stem	SS420
6	Packing	Flexible graphite
7	Gland	Ductile Iron
8	Yoke	Ductile Iron
9	Stem Nut	Brass
10	Handwheel	Ductile Iron
11	Bonnet Gasket	NBR/EPDM
12	Bonnet /Gasket Bolt	CS With ZINC Plated/SS304
13	Regulating Sleeve	Ductile Iron
14	Gland	Ductile Iron
15	Nut	Ductile Iron

DIMENSIONS(mm/inch)

DN	L				H	D	C	M	b	f	W	n-d
DN	F4	F5	BS5163/665	664	H	D	C	M	b	f	W	n-d
50	150	250	178	216	312	165	99	125	19	3	160	4-19
65	170	270	190		330	185	118	145	19	3	160	4-19
80	180	280	203	229	390	200	132	160	19	3	250	8-19
100	190	300	229	254	450	220	156	180	19	3	280	8-19
125	200	325	254		522	250	184	210	19	3	280	8-19
150	210	350	267	280	598	285	211	240	19	3	350	8-23
200	230	400	292	317	770	340	266	295	20	3	400	12-23
250	250	450	330	356	890	405	319	355	22	3	450	12-28
300	270	500	356	380	1040	460	370	410	24.5	4	580	12-28
350	290	550	381	470	1165	520	429	470	26.5	4	580	16-28
400	310	600	406	470	1310	580	480	525	28	4	580	16-31
450	330	650	432	485	1505	640	548	585	30	4	750	20-31
500	350	700	457	510	1790	715	609	650	31.5	4	750	20-34
600	390	800	508	600	1910	840	720	770	36	5	750	20-37
