NRS Resilient Seated Gate Valve Flanged Ends PN10/16 BS5163 DINF4/F5

›

‹

  • NRS Resilient Seated Gate Valve Flanged Ends PN10/16 BS5163 DINF4/F5

›

NRS Resilient Seated Gate Valve Flanged Ends PN10/16 BS5163 DINF4/F5
Face To Face Standard: EN558,
(DIN3202 F4/F5, BS5163, SABS664/665)
Design Standard: BS EN1171/EN1074-2
Flanges Standard: BS EN1092-2
Inspection & testing: BS EN 12266-1
(Other Flange Types available on request)
(ISO Top Flange, Indicator available on request)
+86 13759933792
+86 13759933792
+86 137 5993 3792
melany@huaguanvalve.com
Contact Us
Send Email

Products Description

SPECIFICATIONS:

Face To Face Standard: EN558,
(DIN3202 F4/F5, BS5163, SABS664/665)
Design Standard: BS EN1171/EN1074-2
Flanges Standard: BS EN1092-2
Inspection & testing: BS EN 12266-1
(Other Flange Types available on request)
(ISO Top Flange, Indicator available on request)

Fusion Bonded Epoxy Powder Coated Interior and Exterior to EN14901

Working Pressure: 16bar
Working Temperature: -20℃ to 85℃
Operator: Handwheel,Operating Nut,Gearbox,
Extension Spindle

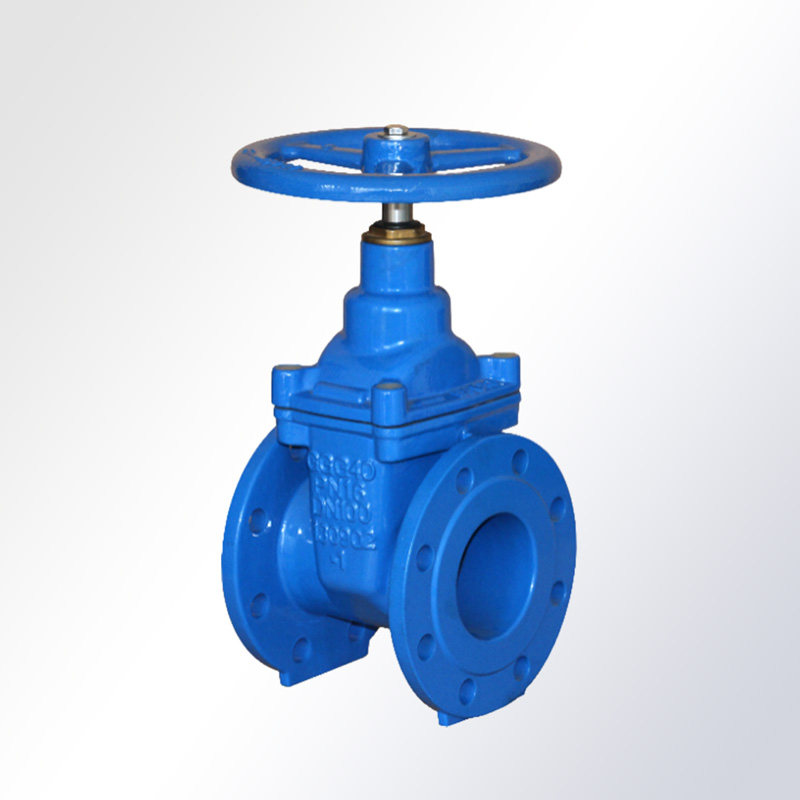

NRS-Resilient-Seated-Gate-Valve-Flanged-Ends-PN10-1

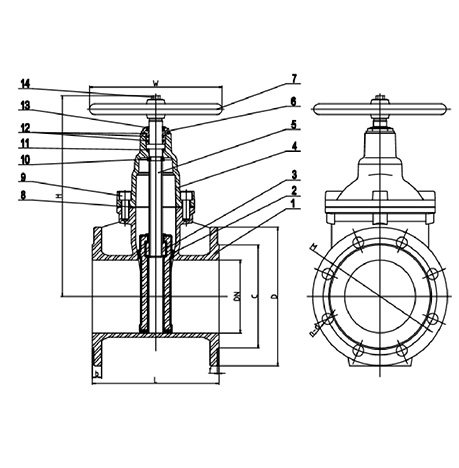

NRS-Resilient-Seated-Gate-Valve-Flanged-Ends-PN10-2

MATERIAL LIST

No

Part

Material

1

Body

Ductile Iron

2

Wedge

DI & EPDM

3

Wedge Nut

Brass

4

Bonnet

Ductile Iron

5

Stem

SS420  (1.4021)

6

Gland

Brass

7

Handwheel

Ductile Iron

8

Bonnet Gasket

NBR/EPDM

9

Bonnet /Gasket Bolt

CS With ZINC Plated/SS304

10

Wedge Nut Gasket

NBR/EPDM

11

Washers

Nylon/Brass

12

O-ring

NBR/EPDM

13

Dust Cap

NBR/EPDM

14

Handwheel Bolts

SS304  (1.4301)

DIMENSIONS(mm/inch)

DN

L

H

D

C

M

b

f

W

n-d

F4

F5

BS5163/665

664

PN10

PN16

PN10

PN16

PN10

PN16

40

140

240

165

　

205

150

84

84

110

110

19

3

160

4-19

4-19

50

150

250

178

216

258

165

99

99

125

125

19

3

160

4-19

4-19

65

170

270

190

　

262

185

118

118

145

145

19

3

160

4-19

4-19

80

180

280

203

229

305

200

132

132

160

160

19

3

200

8-19

8-19

100

190

300

229

254

350

220

156

156

180

180

19

3

254

8-19

8-19

125

200

325

254

　

364

250

184

184

210

210

19

3

280

8-19

8-19

150

210

350

267

280

436

285

211

211

240

240

19

3

305

8-23

8-23

200

230

400

292

317

535

340

266

266

295

295

20

3

356

8-23

12-23

250

250

450

330

356

634

405

319

319

350

355

22

3

406

12-23

12-28

300

270

500

356

380

721

460

370

370

400

410

24.5

4

480

12-23

12-28

350

290

550

381

470

783

520

429

429

460

470

26.5

4

560

16-23

16-28

400

310

600

406

470

902

580

480

480

515

525

28

4

560

16-28

16-31

450

330

650

432

485

980

640

530

548

565

585

30

4

750

20-28

20-31

500

350

700

457

510

1092

715

582

609

620

650

31.5

4

750

20-28

20-34

600

390

800

508

600

1275

840

682

720

725

770

36

5

750

20-31

20-37

700

430

900

610

　

1513

910

794

794

840

840

39.5

5

950

24-31

24-37

800

470

1000

660

　

1663

1025

901

901

950

950

43

5

950

24-34

24-41

900

510

1100

711

　

1837

1125

1001

1001

1050

1050

46.5

5

1050

28-34

28-41

1000

550

1200

811

　

2050

1255

1112

1112

1160

1170

50

5

1050

28-37

28-44
