Foot Valve Flanged Ends PN16

›

‹

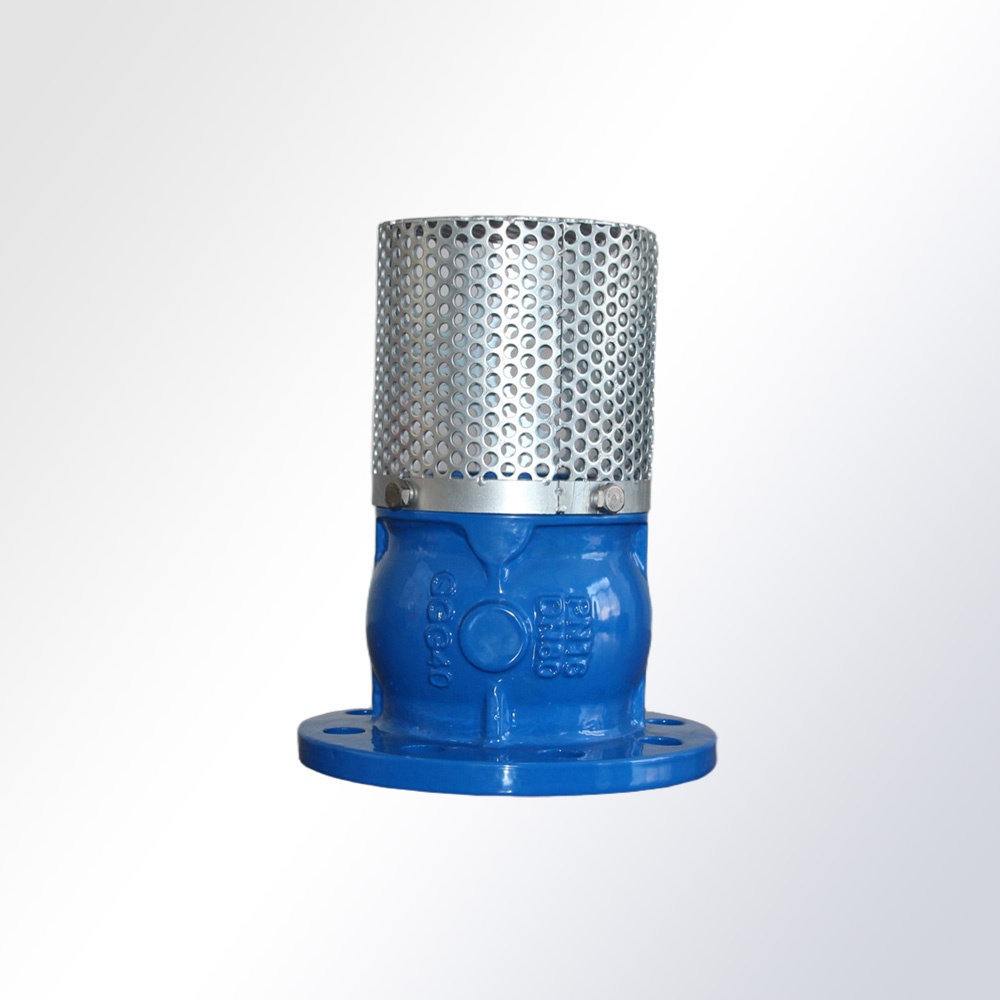

  • Foot Valve Flanged Ends PN16
  • Foot Valve Flanged Ends PN16

›

Foot Valve Flanged Ends PN16
Design Standard:BS EN12334
Flanges Standard: BS EN 1092-2.
Inspection & testing: BS EN 12266-1
Working Pressure: 16bar
Working Temperature: -20℃ To 100℃
+86 13759933792
+86 13759933792
+86 137 5993 3792
melany@huaguanvalve.com
Contact Us
Send Email

Products Description

SPECIFICATIONS:

Design Standard:BS EN12334
Flanges Standard: BS EN 1092-2.

Inspection & testing: BS EN 12266-1

Working Pressure: 16bar
Working Temperature: -20℃ To 100℃

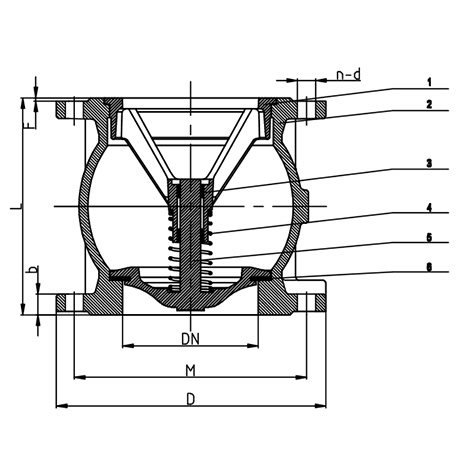

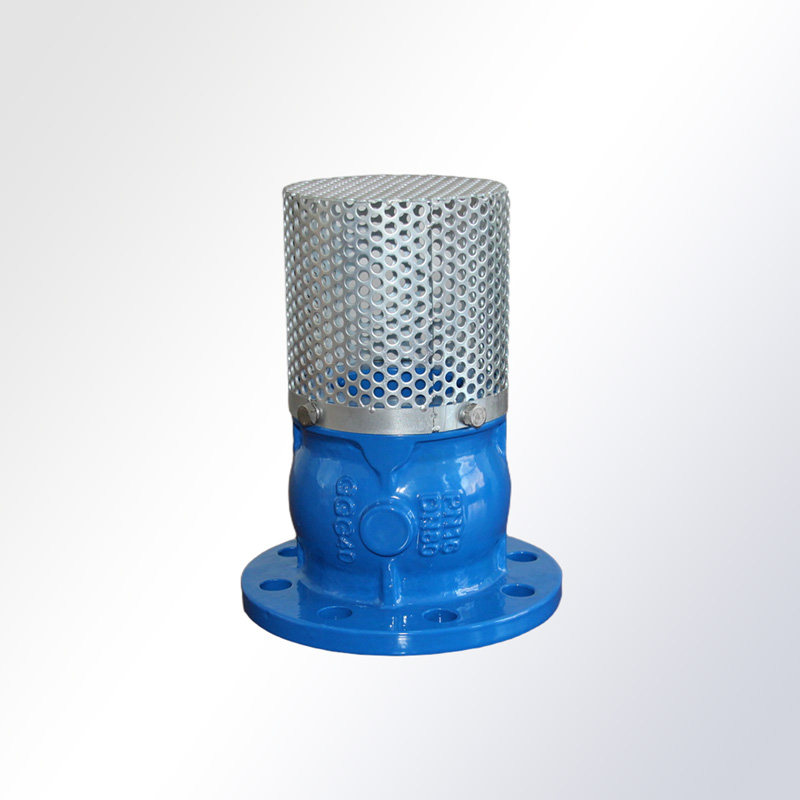

Foot-Valve-Flanged-Ends-PN16-1
Ball-Check-Valve-Flanged-Ends-DIN-BS-AWWA-2

MATERIAL LIST

NO

Part

Material

1

Guide

Ductile lron

2

Body

Ductile lron

3

Guidng Stem

F4

4

Spring

SS316

5

Disc

Ductile lron

6

Seal

NBR/EPDM

DIMENSIONS(mm) EN1092-2 PNI6

DN

L

D

M

b

F

n-d

50

100

165

125

19

3

4-19

65

120

185

145

19

3

4-19

80

140

200

160

19

3

8-19

100

170

220

180

19

3

8-19

125

200

250

210

19

3

8-19

150

230

285

240

19

3

8-23

200

301

340

295

20

3

12-23

250

370

405

355

22

3

12-28

300

410

460

410

24.5

4

12-28
