Basket Type Strainer

›

‹

  • Basket Type Strainer

›

Basket Type Strainer
Flanges Standard: BS EN 1092-2.
Inspection & testing: BS EN 12266-1
Special network diameter can be customized
Working Pressure: 16bar
+86 13759933792
+86 13759933792
+86 137 5993 3792
melany@huaguanvalve.com
Contact Us
Send Email

Products Description

SPECIFICATIONS:

Flanges Standard: BS EN 1092-2.
Inspection & testing: BS EN 12266-1
Special network diameter can be customized
Working Pressure: 16bar

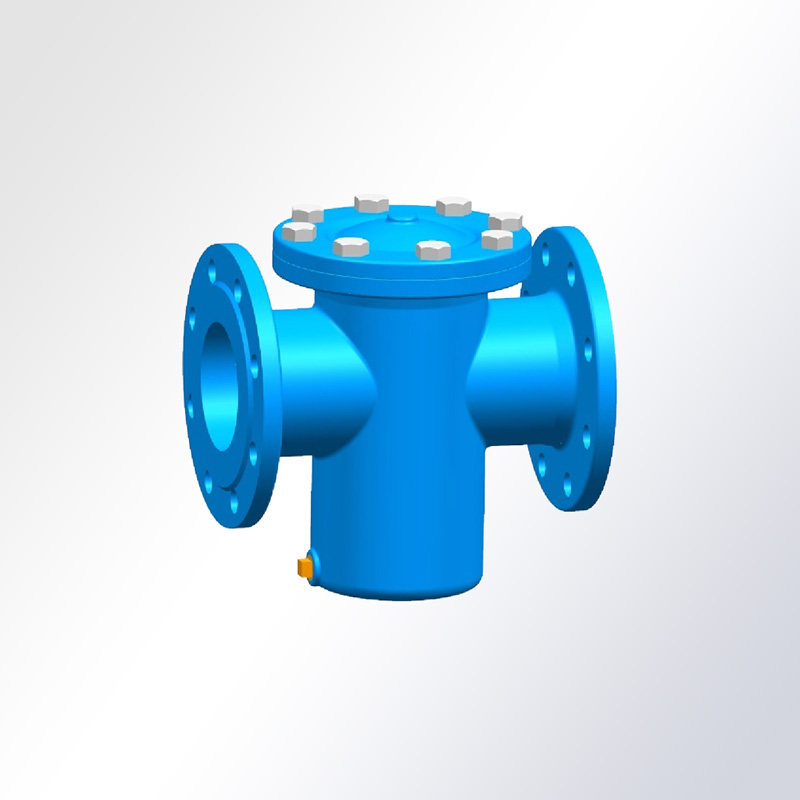

Basket-Type-Strainer-1

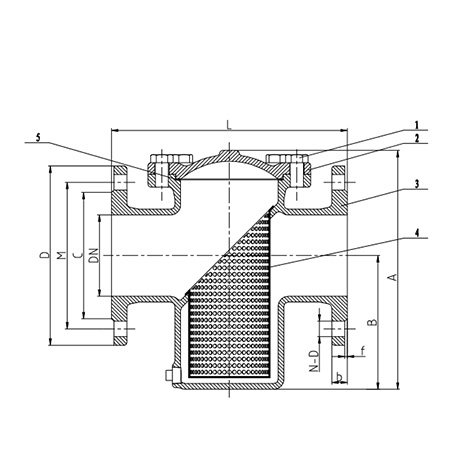

Basket-Type-Strainer-2

MATERIAL LIST

NO

Part

Material

1

Bolts

SS304/316

2

Bonnet

Ductile lron

3

Body

Ductile lron

4

FIlter Screen

Stainless Steel

5

Gasket

NBR/EPDM

DIMENSIONS(mm) EN1092-2 PNI6

DN

L

A

B

M

C

D

b

f

n-d

the filter aperture

50

200

185

100

125

99

165

19

3

4-19

1.5

65

210

220

125

145

118

185

19

3

4-19

1.5

80

240

265

145

160

132

200

19

3

8-19

1.5

100

290

305

175

180

156

220

19

3

8-19

2

125

330

330

185

210

184

250

19

3

8-19

2

150

370

370

220

240

211

285

19

3

8-23

2

200

470

470

280

295

266

340

20

3

12-23

2

250

510

545

320

355

319

405

22

3

12-28

3

300

680

635

380

410

370

460

24.5

4

12-28

3

350

760

765

480

470

429

520

26.5

4

16-28

3

400

840

860

520

525

480

580

28

4

16-31

3

450

840

910

560

585

548

640

30

4

20-31

3

500

840

990

600

650

609

715

31.5

4

20-34

3

600

1050

1350

900

770

720

840

36

5

20-37

3
