Ball Check Valve Thread Ends

›

‹

  • Ball Check Valve Thread Ends

›

Ball Check Valve Thread Ends
Design Standard: BS EN1074-3/BS EN 12334/BS EN16767
Inspection & testing: BS EN1074-1，EN12266-1
Working Pressure:16bar
working Temperature: -20℃ to 85℃
+86 13759933792
+86 13759933792
+86 137 5993 3792
melany@huaguanvalve.com
Contact Us
Send Email

Products Description

SPECIFICATIONS:

Design Standard: BS EN1074-3/BS EN 12334/BS EN16767
Inspection & testing: BS EN1074-1，EN12266-1
Working Pressure:16bar
working Temperature: -20℃ to 85℃

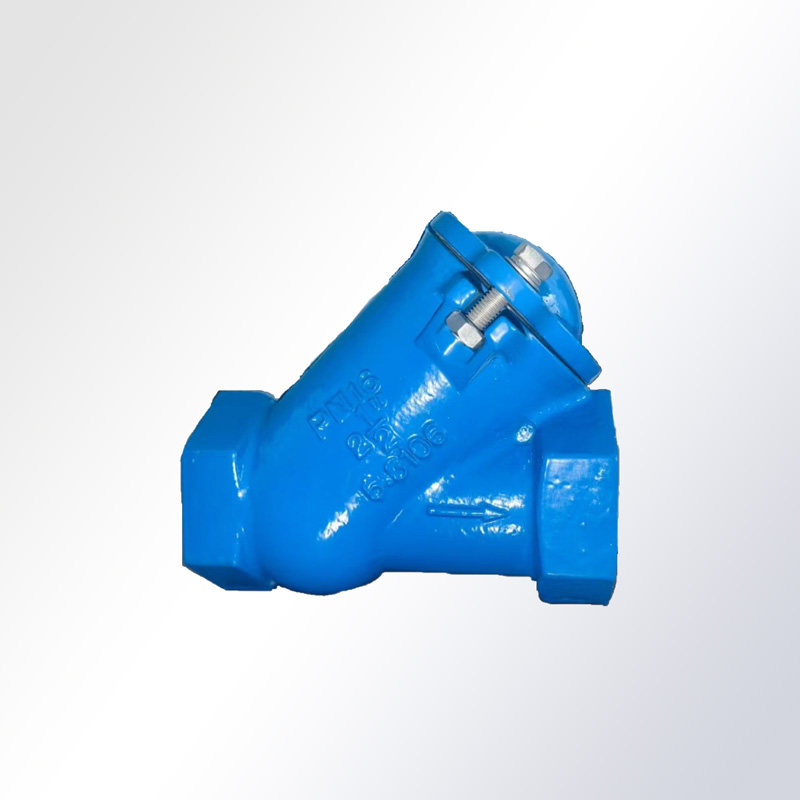

Ball-Check-Valve-Thread-Ends-1

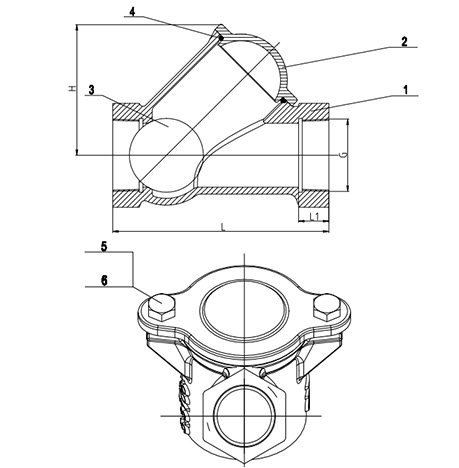

Ball-Check-Valve-Thread-Ends-2

MATERIAL LIST

ITEM

  Part

Material

1

Body

Ductile lron

2

Bonnet

Ductile lron

3

Ball

Steel  & EPDM

4

Gasket

NBR/EPDM

5

Bolts

A2-70

6

Nut

SS304

DIMENSIONS(mm)

DN

L

G

L1 (Max)

L1 (Min)

25

125

1''

19.1

14.5

32

132

1.25''

21.4

16.8

40

145

1.5''

21.4

16.8

50

175

2''

25.7

21.1

65

200

2.5''

30.2

23.2

80

243

3''

33.3

26.3
